SC826-CN智能模組（MSM8953）

時間：2024-02-06           閱讀量：1498

1.概述

SC826是基于高通MSM8953平臺設計的智能模組，SC826具備8核Cortex-A53處理器，主頻高達2.0GHz，內部集成高性能圖形引擎，可以流暢播放1080p視頻，支持雙屏顯示；支持7種制式的遠距離通訊模式和雙頻WIFI/BT近距離無線傳輸技術，支持GNSS無線定位技術。

SC826搭載開放的Android操作系統，擁有MIPI/ USB/ UART/ SPI/ I2C等多種擴展接口，是無線智能產品核心系統的優選方案。

SC826智能模塊廣泛應用智能手持設備、智能收銀機、安防監控、車載設備、販賣機、物流柜等設備和行業。



2.技術規格

基本特性

Package
 154 LCC+ 149 LGA
Processor
 Qualcomm's? MSM8953, ARM? Cortex?-A53 8-core 64-bit CPU up to 2GHz, 4-core 1MB L2 cache, 4-core 512KB L2
GPU
 Adreno 506
Memory(Default)
 2GB LPDDR3 RAM;16GB eMMC Flash
Dimension (mm)
 55.0*35.0*2.85
LTE FDD
 B1/3/5/8
LTE TDD
 B34/38/39/40/41
WCDMA B1/8
CDMA2000/EVDO
 BC0/EVDO Rev.A
TD-SCDMA B34/39
GSM 900/1800MHz
WIFI 2.4G+5G, 802.11a/b/g/n/ac
BT 4.2 BR/EDR/BLE
GNSS GPS/GLONASS/Beidou
OS
 Android N/P
Power Supply
 DC 3.5V～4.2V
Weight About 12.1g
Operating Temp
 -30°C - +75°C
Storage Temp
 -40°C - +85°C

數據傳輸

LTE FDD (Mbps)
 Max 300(DL)/ 50(UL)
LTE TDD (Mbps)
 Max 260(DL)/ 30(UL)
WCDMA (Mbps)
 HSUPA Max 5.76(UL)
HSPA+ Max 42(DL)
TD-SCDMA (Mbps)
 Max 4.2(DL)/ 2.2(UL)
CDMA2000 1X/EVDO (Mbps) Max 3.1 (DL)/ 1.8 (UL)
EDGE/GPRS(Kbps)
 EDGE:Max 296(DL)/ 236.8(UL)
GPRS:Max 107(DL)/ 85.6(UL)
WIFI (Mbps)
 up to 433

視頻處理

Video Encode
 4K@30fps (H.264/H.265/VP8)
Video Decode
 4K@30fps (H.264/H.265/VP8/VP9)

接口

UART/SPI(Mbps)
 3 x UART Up to 4;1 x SPI;2 x I2S
I2C(Kbps)
 Up to 3.4Mbps for TP/Camera/Sensor
USB
 1 x USB3.0/2.0 high speed, Support USB OTG
SDIO
 1 x SD3.0
CAM
 ISP x 2 MIPI_CSI x 3 up to 2.1Gbps
4 lane MIPI_CSI x 3 (up to 24MP)
GPIO
 29 GPIOs
Display
 2 x 4-lane MIPI_DSI, up to (1920x1200)@60fps
Speaker
 1 x Mono,differential 1W CLASS-D
Receiver
 1 x Mono, AB
Mic
 2 x analog microphones
Handset
 1 x Stereo, single-ended output
USIM
 2 x SIM card,support dual-SIM dual-standby(Default Single)
Keys
 Power on/off /Volume up /Volume down /Reset
Advantages
 1、Octa-core A53 processor with up to 2.0GHz CPU Clock Speed
2、Slender package to support more applications
3、Long-term lifecycle supply guarantee
Applications
 Smart Cash Register,Security Monitoring, High-end Police or Law Enforcement Equipment, Vehicle-mounted Equipment, Smart Handheld Equipment, Logistics Cabinet, Advertising Machine

認證

Regulation
 RoHS/CCC/SRRC/NAL
Operator
 NA
Industry
 NA
* = 計劃/開發中

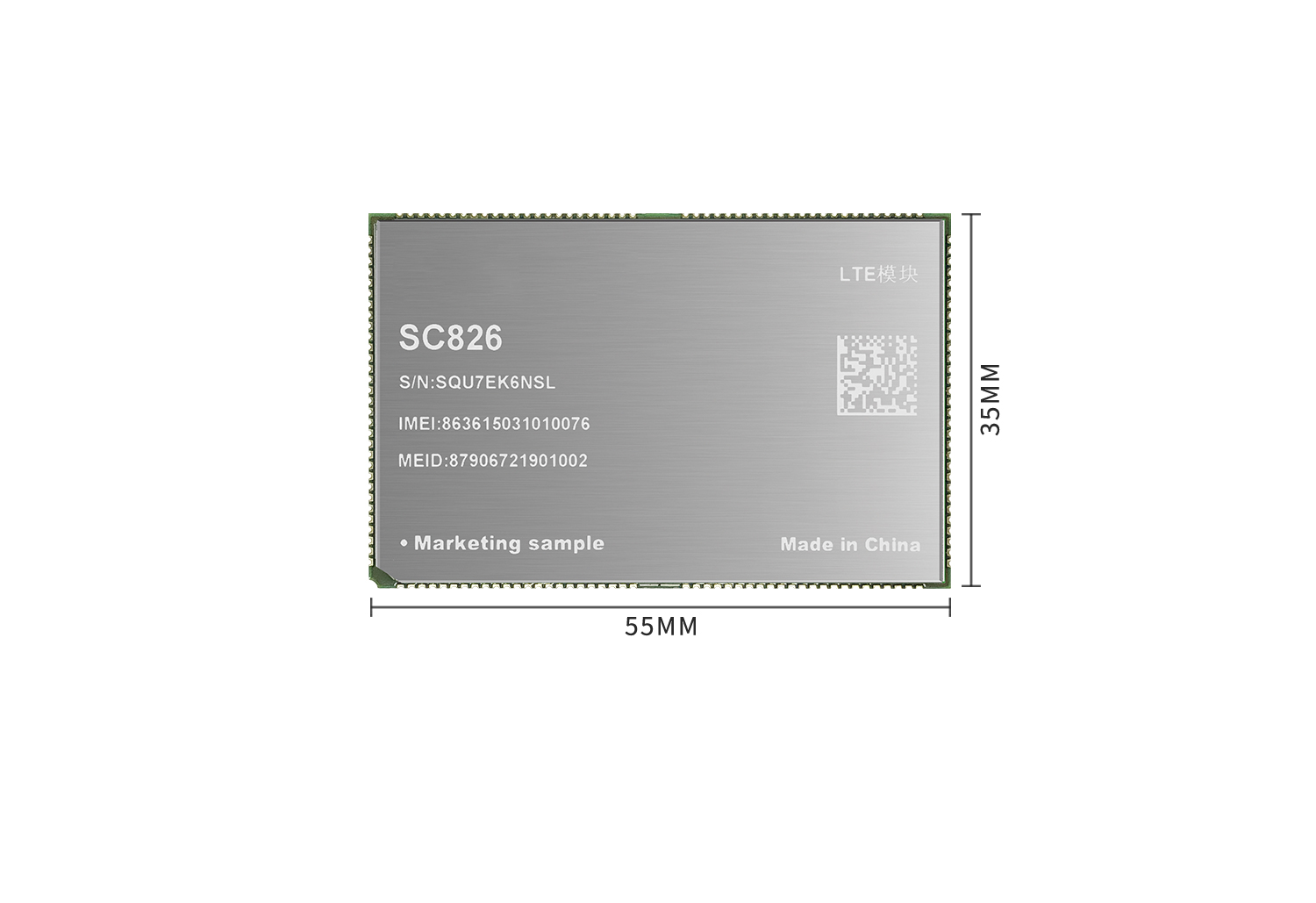

3.產品圖片
